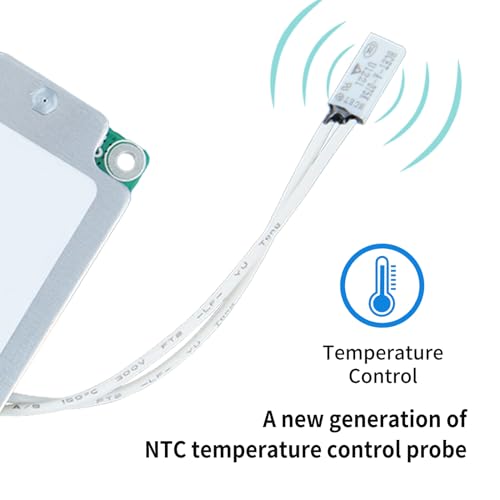

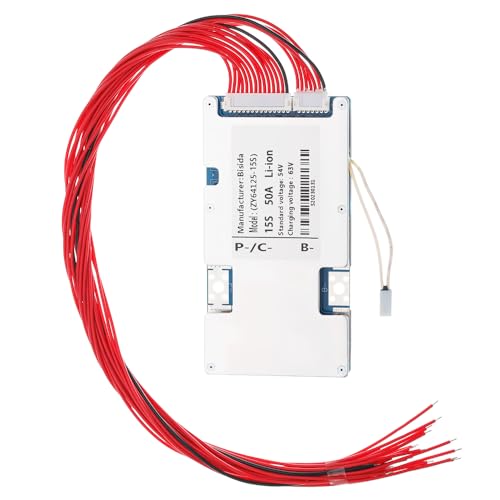

HOT ! 15S BMS 54V 50A Li-ion PCB Protection Board with Balance Wire and NTC,Ten Functional protections, Common Port, for Solar Energy Storage, Balance Car Lithium-ion Battery Pack (15S 54V 50A)

※baigali.du.gov.mn Limited model
YouTubers have introduced us to the usability of our products!
Introducing video here

Online sales
Price (tax included)

27.99USD

Quantity purchased

Pickup store：

Choose a shop

Estimated delivery time:

Order by

1pm → Prepare by 5pm

5pm → Prepare by The next morning

Estimated delivery time:

Delivery is scheduled for around 2026-01-17.

Cash on delivery is limited to credit or cash on delivery. For other payment methods, please refer to here.

*It may take some time for the product to be delivered on January Wednesday, or public holidays, and depending on stock availability.

Added to wish list

More information about 15S BMS 54V 50A Li-ion PCB Protection Board with Balance Wire and NTC,Ten Functional protections, Common Port, for Solar Energy Storage, Balance Car Lithium-ion Battery Pack (15S 54V 50A)

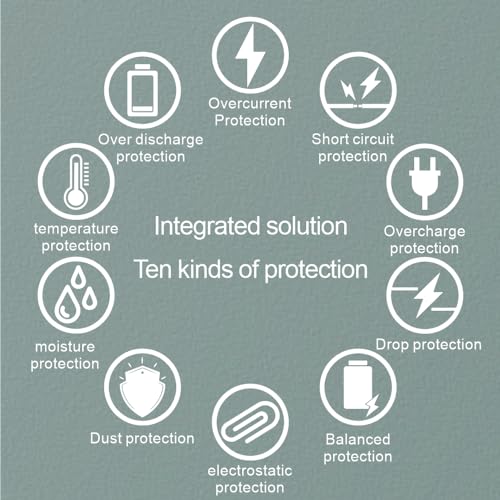

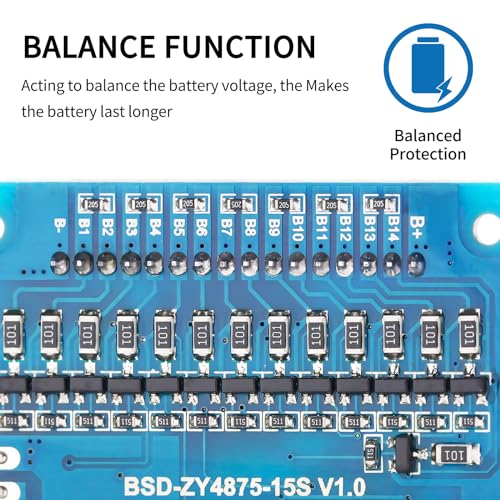

MULTIPLE PROTECTION Bisida's BMS has a variety of protection functions, such as over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection, Downtime protection，Voltage balance(passive balance), etc.
OPERATING TEMPERATURE Bisida's BMS supports (3.7V) lithium-ion battery charging and discharging in zones from 2.65V to 4.25V, with low temperature protection up to -20°C and high temperature protection up to 70°C. Different voltages and currents have different parameter details. Confirmation required.
NOTICE Before installing the BMS protective board, it is necessary to match the voltage, capacity, and internal resistance (the voltage difference between the battery per section is not higher than 0.05V, the difference between the internal resistance is not more than 5MΩ, and the capacity difference is less than 30mAh). Otherwise the battery pack will not be able to charge.

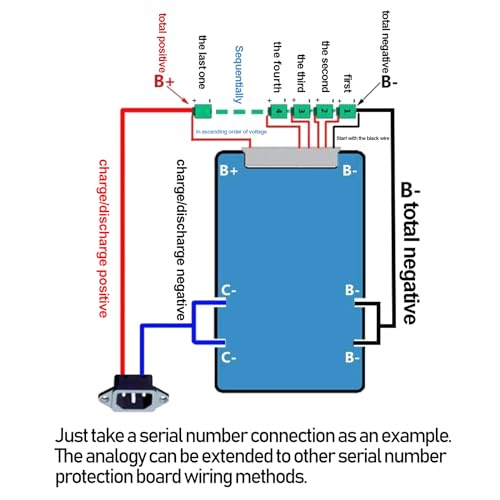

WIRING METHOD The wiring methods of Common ports of BMS: B- connection battery pack negative , C- connection charging negative/output negative. All the positive electrodes are the total positive pole from the battery pack.

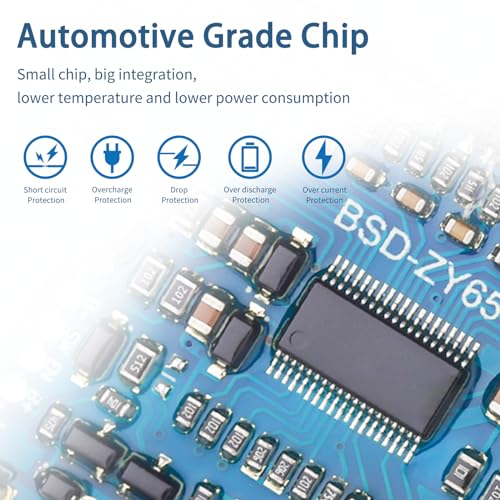

EXCELLENT SOLUTION Bisida's BMS is manufactured using excellent protective integrated circuit IC and excellent Mosfet, making it robust, long-lasting and reliable
